TOPBiHiKu6

Project Description

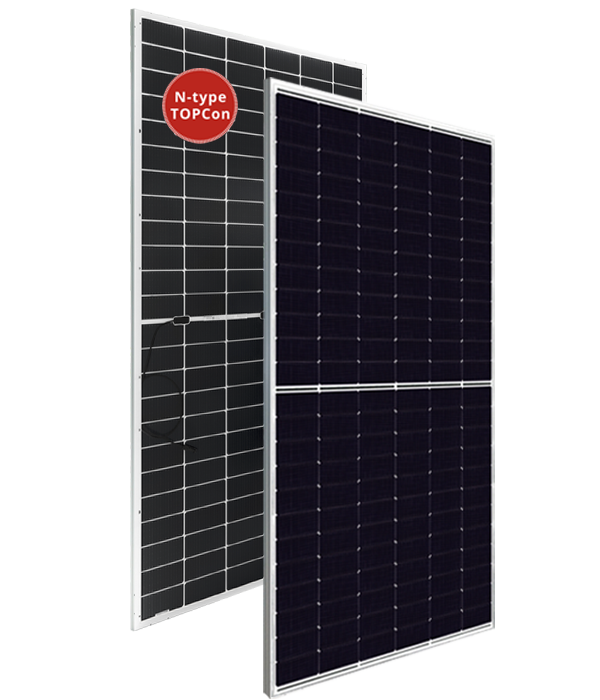

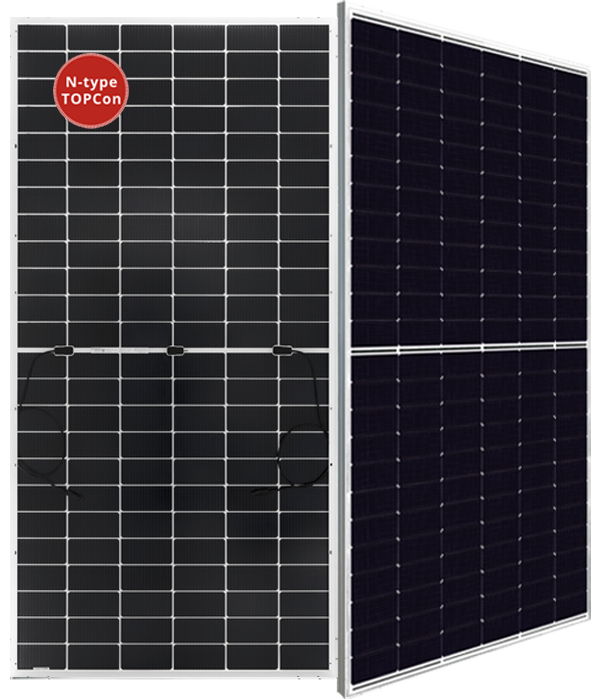

N-Type TOPCon Bifacial Module

TOPBiHiKu6

* 12 years enhanced product warranty on materials and workmanship * 30 years linear power output warranty According to the applicable Canadian Solar Limited Warranty Statement

High Power

· Module power up to 625W，module efficiency up to 23.1%, bifaciality up to 85% · No boron-oxygen LID and anti PID, less degradation · 16BB cell technology, better light trapping and current collection, higher power output

High energy yield, low LCOE

· Low temperature coefficient (Pmax): -0.29%/℃, more energy in hot climate · 2% higher energy generation than PERC · About 2.3% lower LCOE than PERC

Enhanced reliability

· Minimize the micro-crack impacts to module · Snow loads up to 5,400Pa, wind loads up to 2,400Pa

Specifications

CS6W-TB-AG：2278 x 1134 x 30 mm Front side power range: 565~595W

CS6.1-72TB：2382 x 1134 x 30 mm Front side power: 595~625W

CS6.1-60TB：1994 x 1134 x 30 mm Front side power: 490~515W

Wafer size 182mm

Module efficiency up to 23.1 %

Up to 85% Power Bifaciality

Lower LCOE & system cost
